3Kw Golden Motor

NOS High-performance axial flux 3kW Air-cooled BLDC motor, offering efficient power and reliable operation for electric vehicles, marine, and industrial applications.

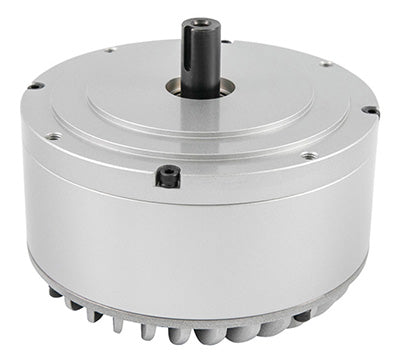

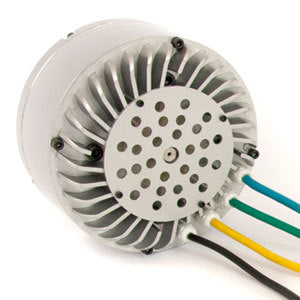

3 KW BLDC Motor Air Cooled

• Model: HPM3000B -- High Power BLDC Motor
  - Voltages: 48V, 72V
  - Rated power: 2-3KW
  - Peak power: 6KW
  - Speed: 3000-5000rpm
  - Rated torque: 10 Nm
  - Peak torque: 25 Nm
  - Efficiency: >90%
  - Dimensions: 18cm dia. 12.5cm height
  - Weight: 7.3kg
• IP Rating: IP65

Motor Wiring

Motor+Controller Wiring

Motor Drawing

Motor Performance Data (48V), Motor Performance Curve (48V)

Motor Performance Data (72V), Motor Performance Curve (72V)

STEP drawing Air cooling spline shaft
