72V 4.2kWh
Battery

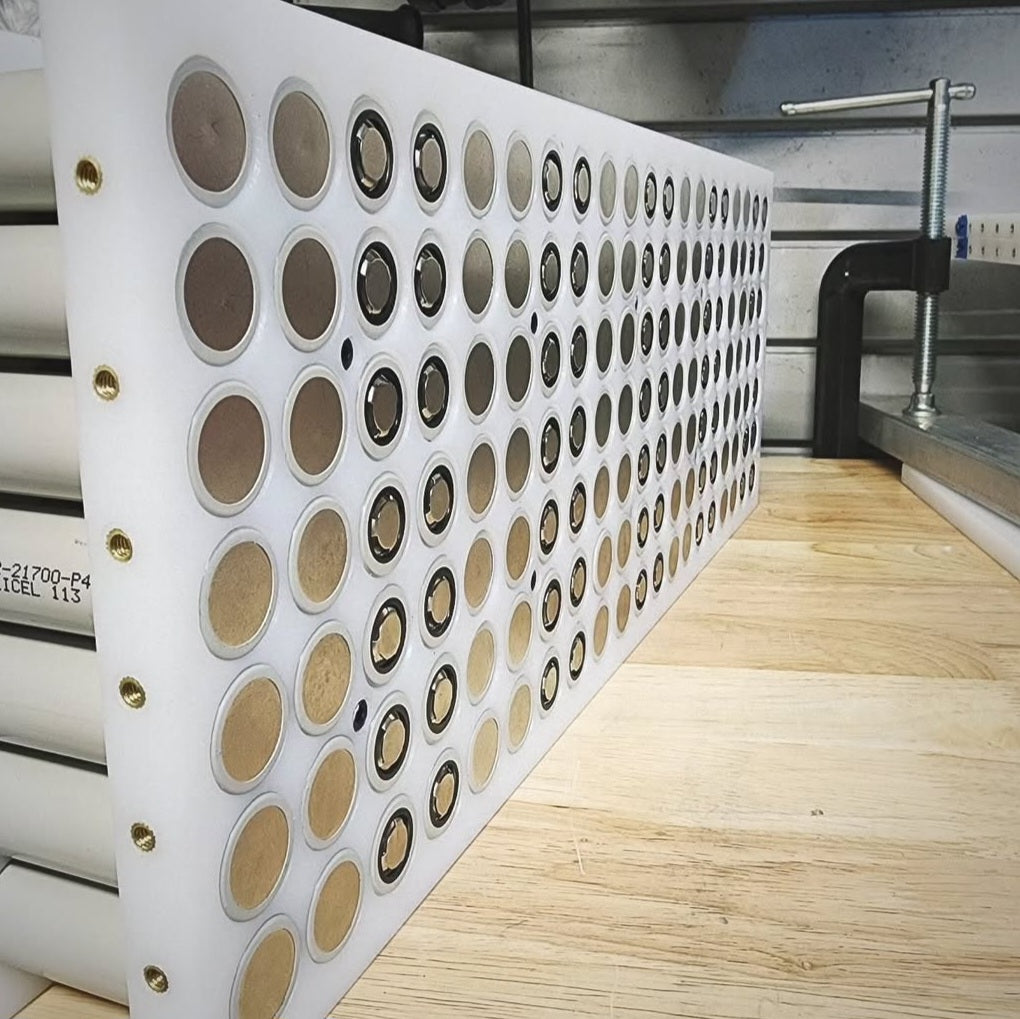

Built with high quality components housed in an aluminum case. This battery pack has some serious performance characteristics.
Here is an Overview:
Weight: 69Lbs
Output: 72V Nominal / 58.8Ah / 4.2KWH
Cells: 2170 Molicell P42A
AUX Output: 12V @15A
Daly 400A Smart BMS
- Bluetooth connection
- Single cell over discharge protection
- Passive equalization function: Balancing Current 100mA +/- 20mA
- Charge & Discharge Over-Current Protection: MAX Charge 20A, MAX Discharge 450A
- Operating/Resting Current consumption: 50mA / <800uA
- NTC Temperature sensing: operating temperature range:-40F to 185F (40C to 85C)
- Low Currant "Sleep" Mode after 1 Hrs
- Daly SOC Voltage and % indicator mounted on the lid
- Excellent repairability and modularity with its internal module construction that keys into place to hold the racks safely in place for high vibration environments.
- Integrated case pressure venting and passive safety features.
- External sealing and seal design minimizes the possibility for dust and water ingress.
Custom 4130 Chromoly steel
Frame

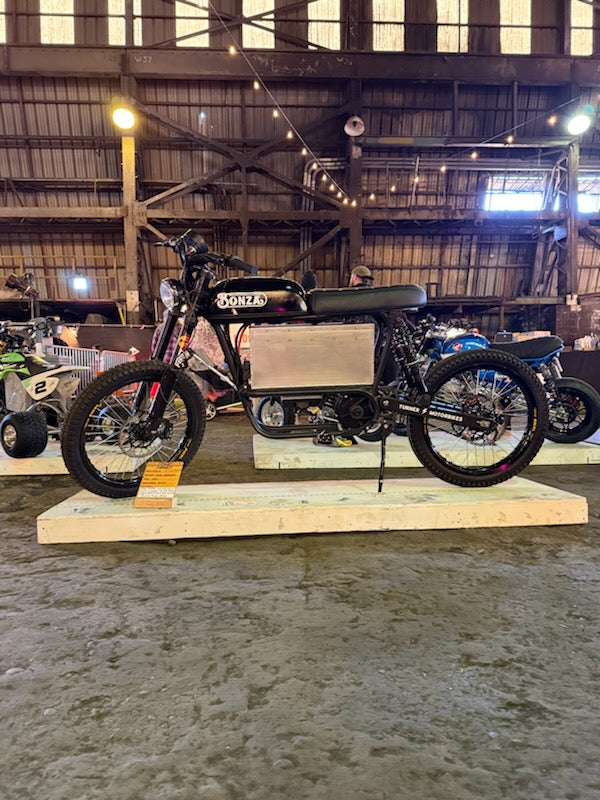

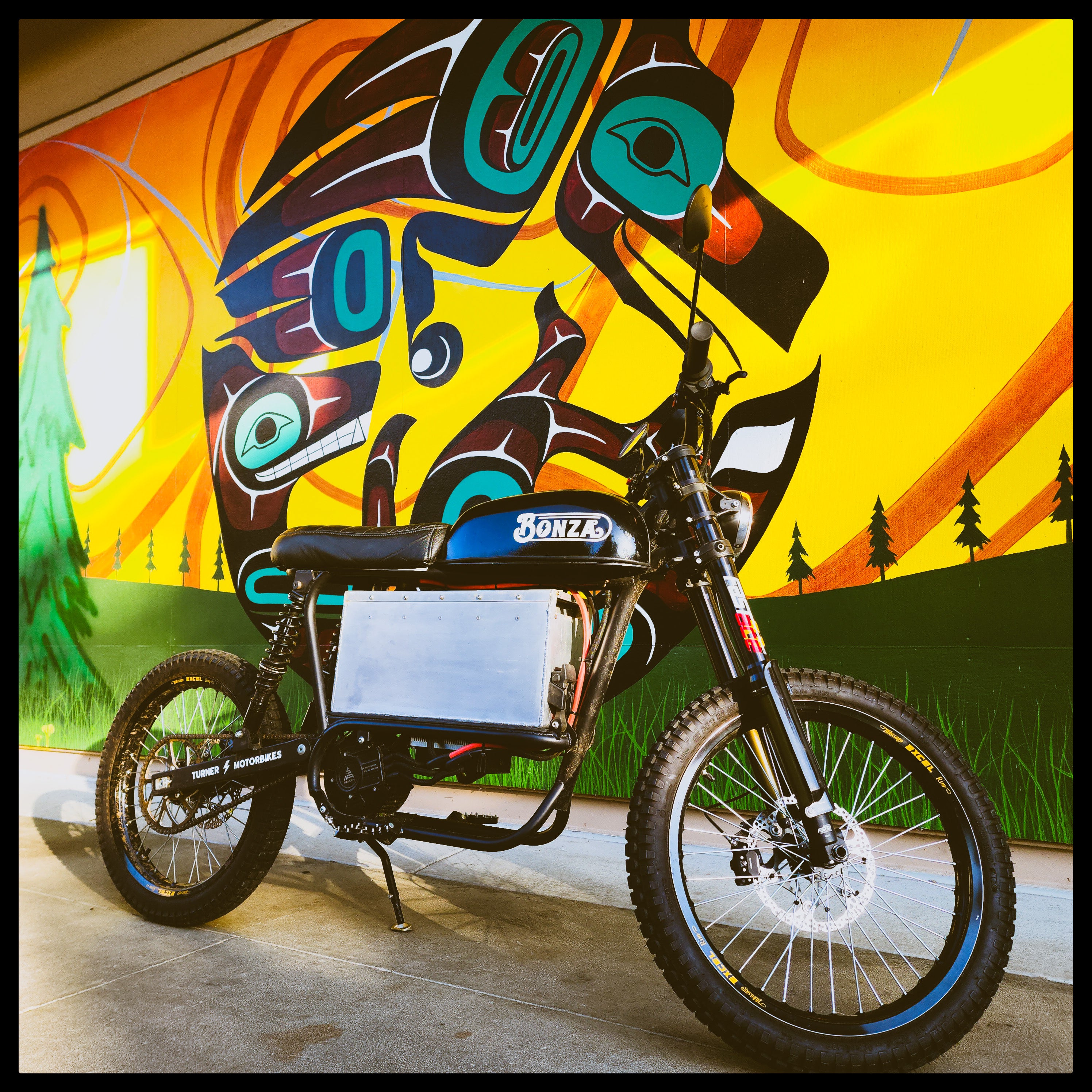

Steel is real or so they say, and we use 4130 Chromoly steel to build the Bonza Frame. Designed and fabricated in house we make a high power Emoto frame unlike any other out there. Made integrating the best design features of classic motorbikes we have synthesized a design that we feel makes excellent use of contemporary Emoto components while still emulating the frame designs of class act Enduro and early 60's cafe and scrambler construction.
The Bonza frame integrates a unique jackshaft design that has become an amazing modularizing platform for our customizing our bikes. Multiple motor system and final drive configurations can be fitted easily, while also creating a slackless drivetrain setup. The suspension pivot mounts to the rear swing arm concentrically leading there to be consistent tension of the drive chain or belt across it movement.
QS165 5-8kw
Motor

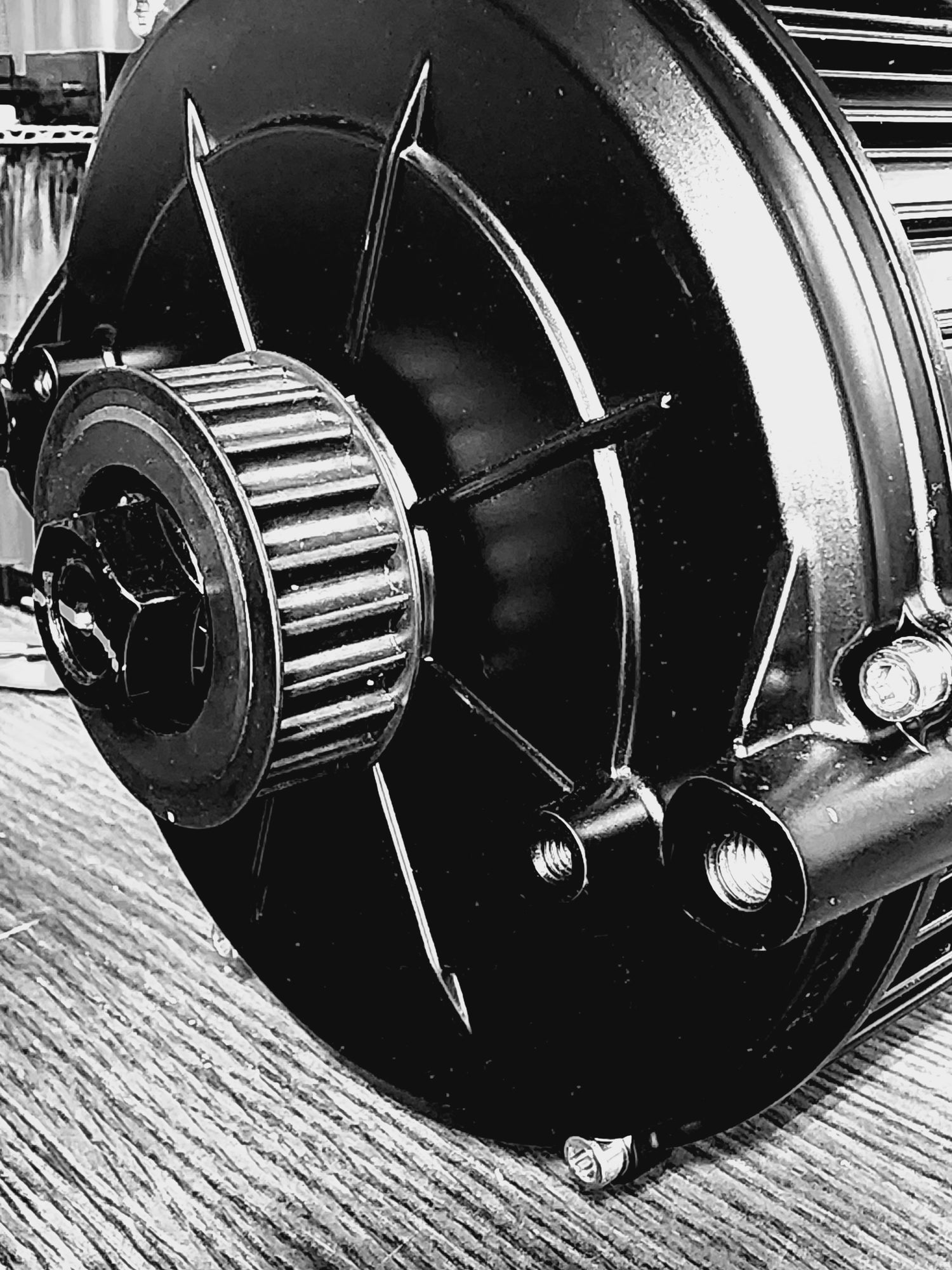

We chose to standardize around the QS motor standard because it is a wicked powerful and compact motor which allows us the best pathway to upgrade to a number of different motor systems if upgrading is something you like to do to your bike.
Specifications
Permanent magnet synchronous motor
Magnets: 35H
Working voltage: 72V
Rated power: 5Kw
Max Power: 10Kw
Motor no load RPM: 5000-6500 RPM
Position sensing: Hall and Encoder Versions.
Max Torque: 48Nm / 450A Peak
Max Current Limit: 180A
Peak Phase Current: 500A
Magnet pole pairs: 5
Motor KV: *63KV
Temp sensor KTY83/122
Water/Dust Ingress cert: IP67
Max Working Temp: 140F 60C
Max Coil Temp: 356F 180C
Weight: 18.5LBS 8.4Kg
Find out all of the motors that are compatible with the Bonze below.
Fardriver ND72680
Controller

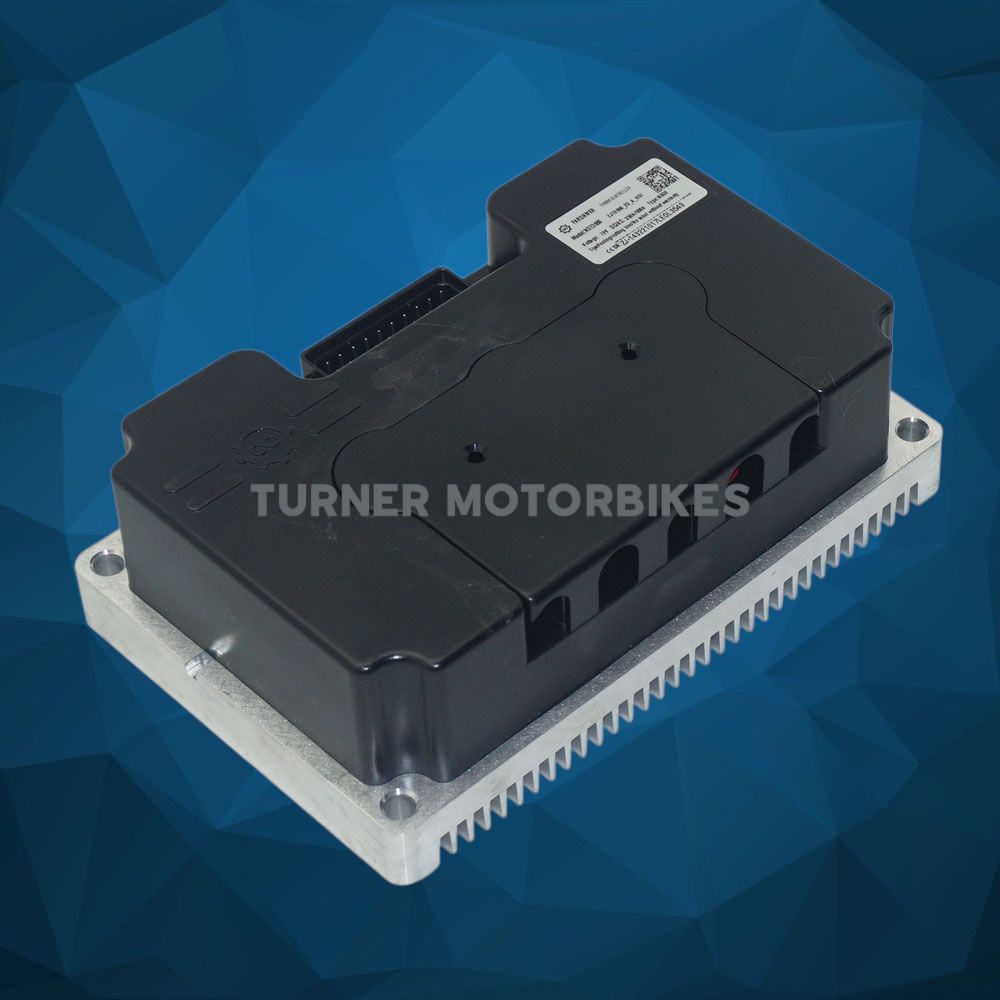

FARDRIVER ND72680 is a High Power Electric Motorcycle Controller
Programmable With Bluetooth For 4-6KW QSMotor
FarDriver 680A sine wave type controller, with self-learning function. Generally, it matches well with QS Motors and makes for a robust and easy to tune platform. You can really learn a lot about these bikes by taking a peek under the hood and getting your hands on the Bluetooth app to be able to adjust and dial in your ideal parameters for the way you ride. That being said if you prefer there are a whole host of other controller manufacturers that are compatible with the bonza.
See which other types of controller are available to upgrade your bike with.
Primary Belt / 420 Chain
Drivetrain

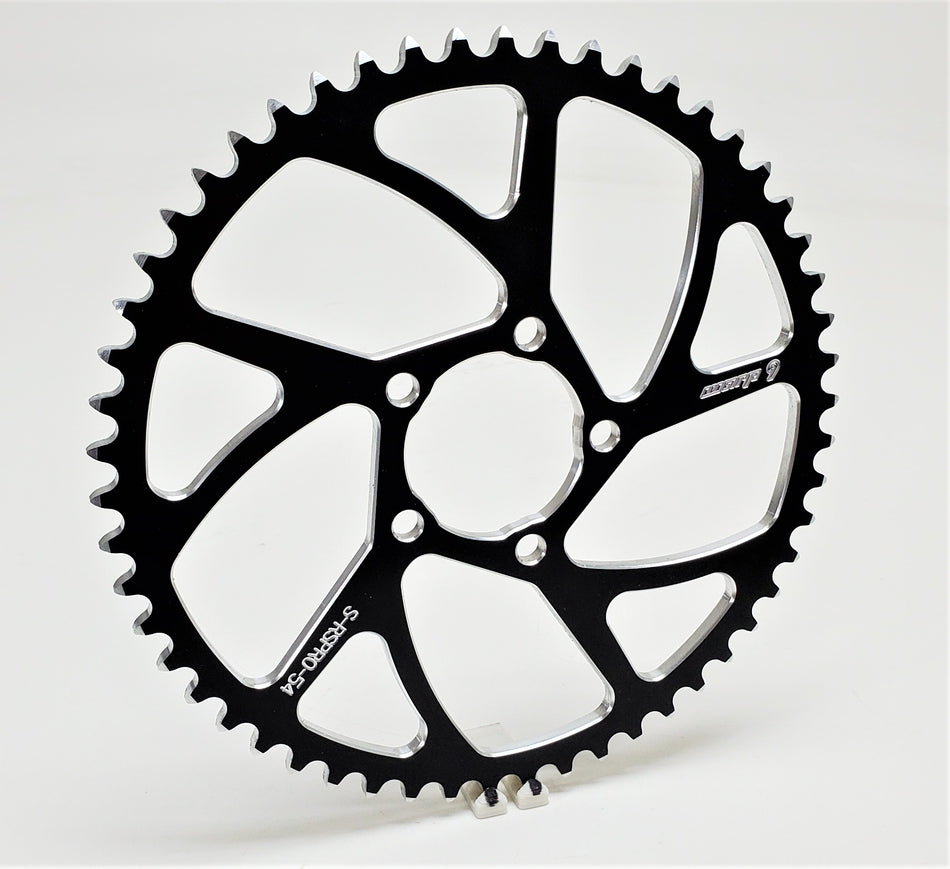

Our drivetrain consists of a primary Gates carbon belt running from the motor to the jackshaft transferring the power to a 420 chain to the rear sprocket with a 1:8.55 Final dear reduction. putting that power to work and making a quiet, low maintenance drive system that offers the same benefits and upgradability that we have built into every feature of the Bonza.
See our drivetrain collection here.
Hydraulic disk brakes
Brakes

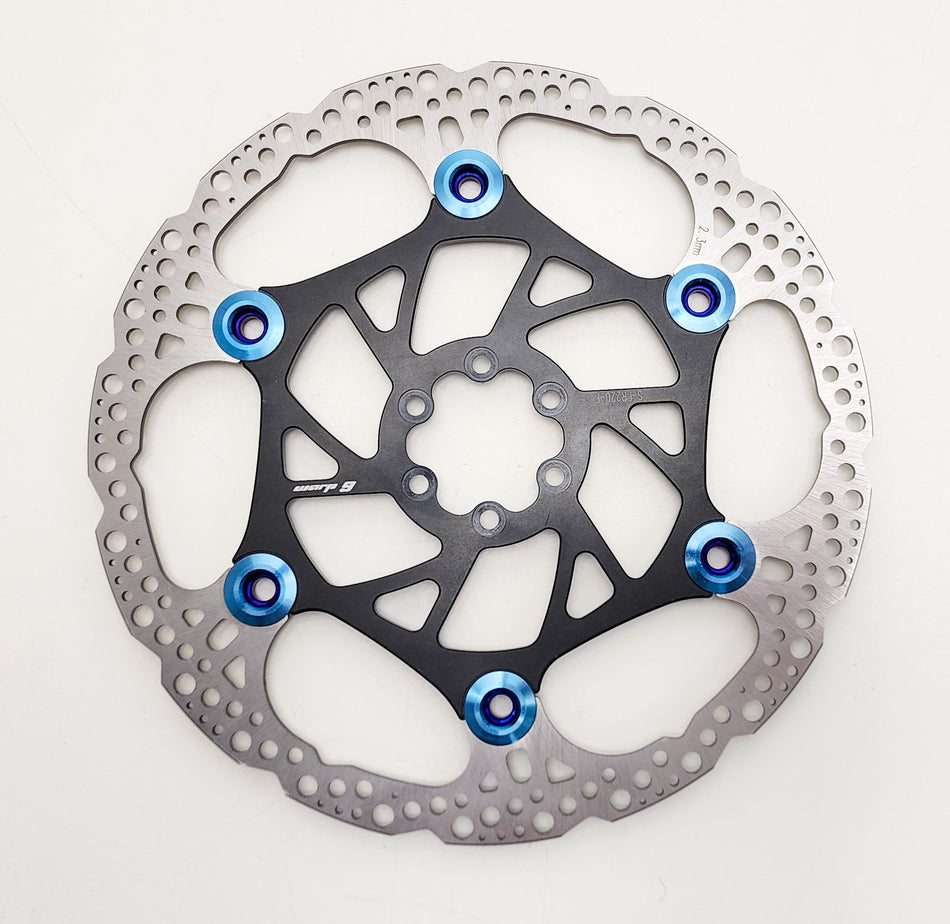

Like the other components on the bonza we want to install the most reliable components on our bike and give you the option to upgrade as you see fit. For our builds we have been really loving the performance of the SRAM Maven Brakes. We have been using the SLV model brakes with an additional inline brake cutoff sensor and it has been showing excellent performance and long term durability.
Here are the brake components we have available.

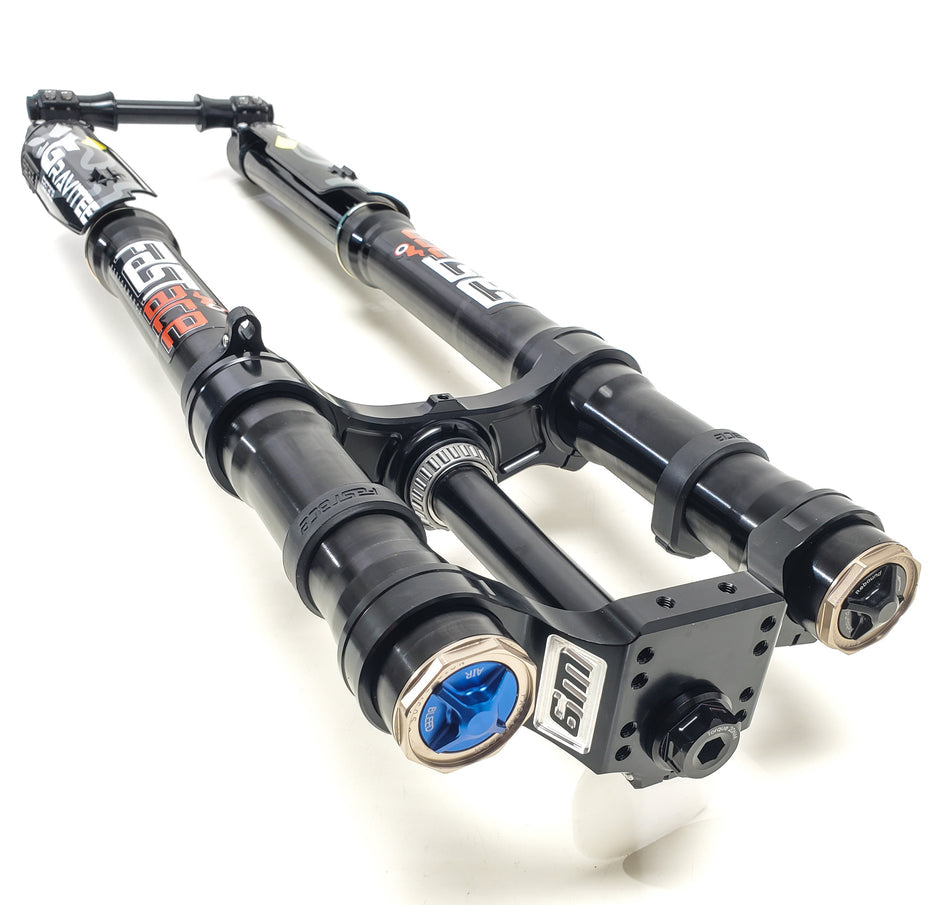

Fast Ace ALX13RC forks / Egoboost shocks.
Suspension
We are using the FASTACE ALX13RC forks on the bonza, chosen for their excellent performance and reputation for serviceability. For the rear shocks we are rocking some 160MM EgoBoost progressive rate shocks on the back.
See our suspension options and choose the ones for how you ride.
