CT-22 Display

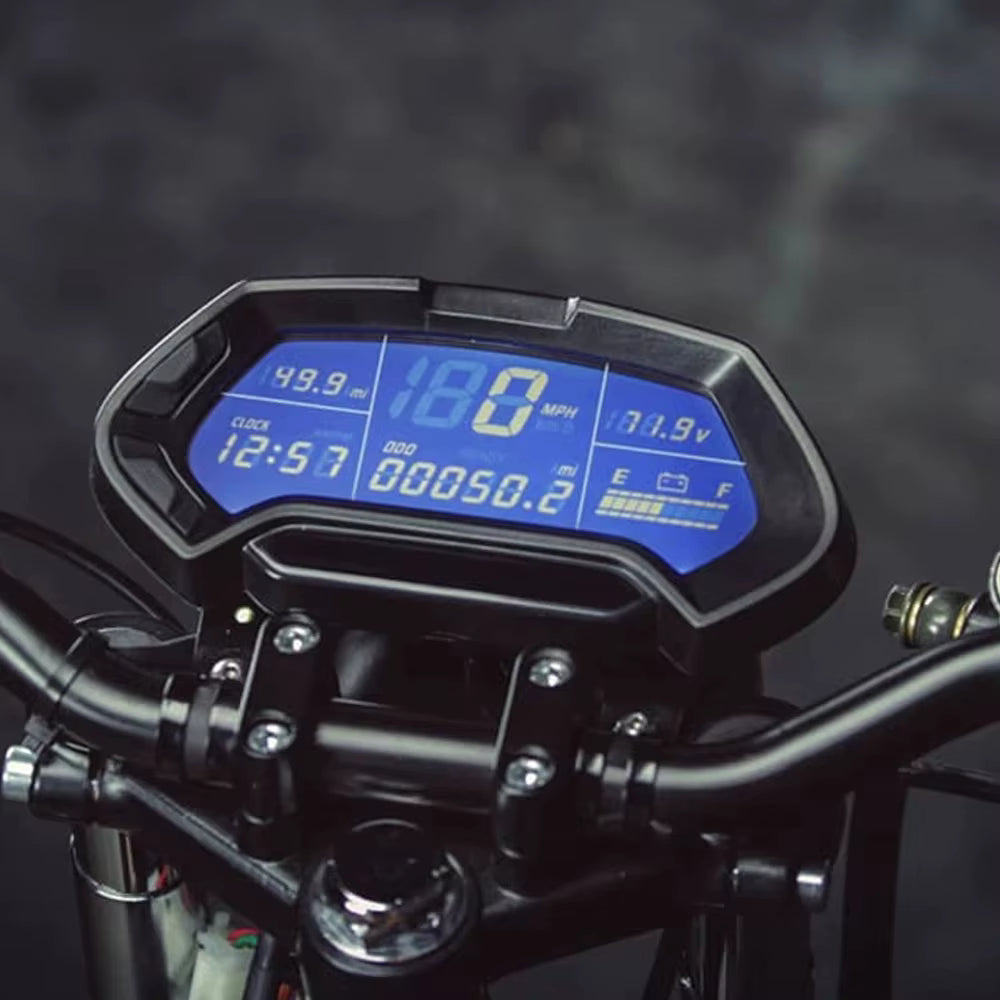

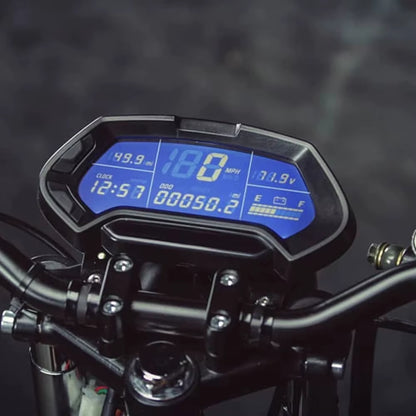

CT-22 48V 72V 120V Universal Hall Digital LCD Programmable Speedometer Display for Electric Motorcycle High Power Bike

Product Information

Specifications

• Model: CT-22 Speedometer
• 3 M6 bolt studs and hardware for mounting


• Work voltage: 48v-120v rated


Product Usage Instructions

Clock Adjustment To adjust the clock, press and hold the SET key for 10 seconds. The speed unit will switch between KPH and MPH. Repeat the process to switch back. Metric and Imperial System Switching In normal display mode, press and hold the SET key for 10 seconds to switch between metric (KPH) and imperial (MPH) systems. Reset the Subtotal TRIP Value To reset the subtotal TRIP value, press and hold the ADJ key for 3 seconds while in normal display mode. Brightness Adjustment The backlight brightness cannot be adjusted as it remains constant. Adjust the Parameters of Speedometer To adjust the parameters, enter the password 6610. Use the SET key to navigate through different parameters and modify values as needed. FAQ

• What is the default password for adjusting parameters?
  • The default password for adjusting parameters is 6610.
• How can I reset the total TRIP value?
  • To reset the total TRIP value, refer to the user manual for specific instructions
• What is the Plug Pinout?
  • See the manual linked here for details.
