Built with high quality components housed in an aluminum case this battery pack has some serious performance characteristics.
Overview:
Weight: 69Lbs
72V Nominal / 58.8Ah / 4.2KWH
Cells: 2170 Molicell P42A
AUX OUTPUT: 12V @15A
Daly 400A Smart BMS
- Bluetooth connection
- Single cell over discharge protection
- Passive equalization function: Balancing Current 100mA +/- 20mA
- Charge & Discharge Over-Current Protection: MAX Charge 20A, MAX Discharge 450A
- Operating/Resting Current consumption: 50mA / <800uA
- NTC Temperature sensing: operating temperature range:-40F to 185F (40C to 85C)
- Low Currant "Sleep" Mode after 1 Hrs

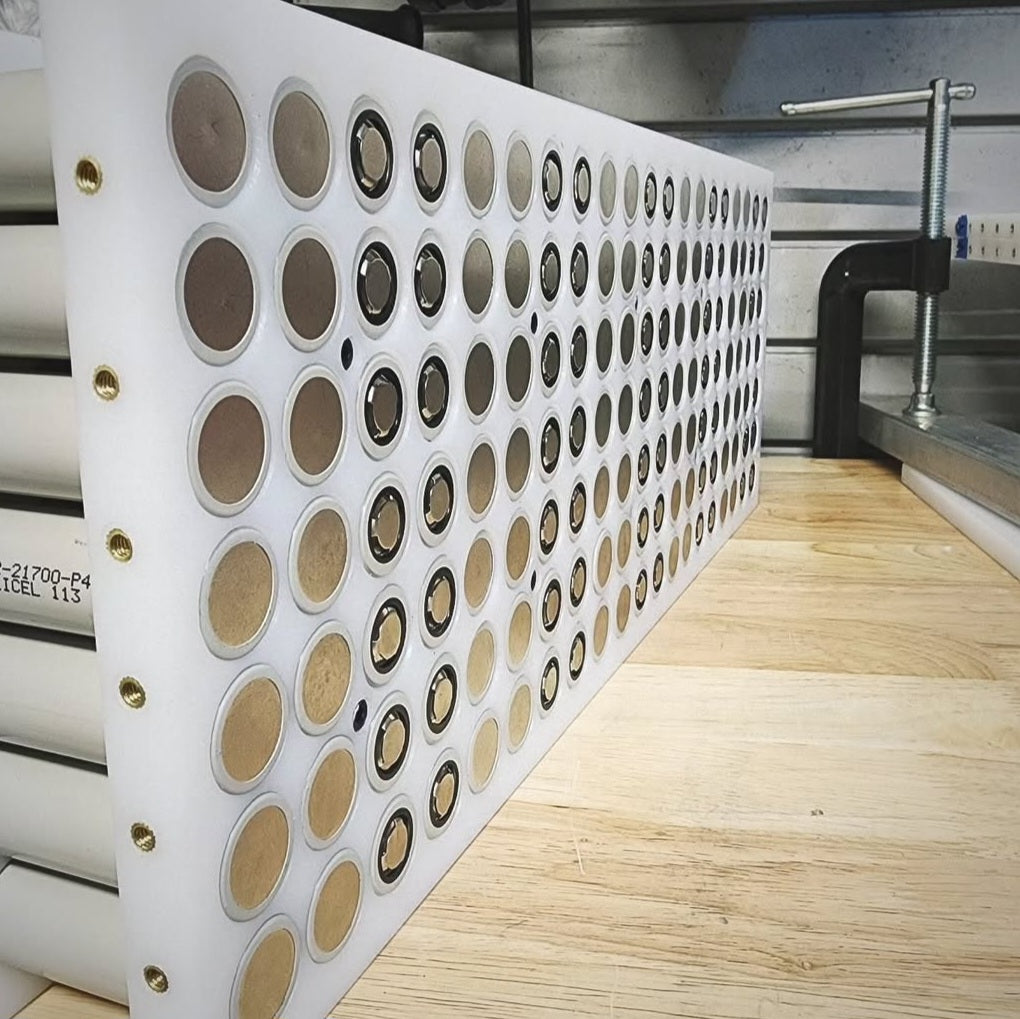

Making a battery by hand, lets talk about it. We designed the bonza battery from the ground up. We make the modules cell racks from HDPE and make dual modules that slide down into the case. Both are 10S14P (36V) and they are series connected to achieve 72V and a final 20S 14P configuration. With the molicell P42A cells, this is a high energy density pack with great longevity and repairability.
https://www.instagram.com/p/DO1cRRUFWKn/
Making the case I used sturdy 5052 aluminum.
